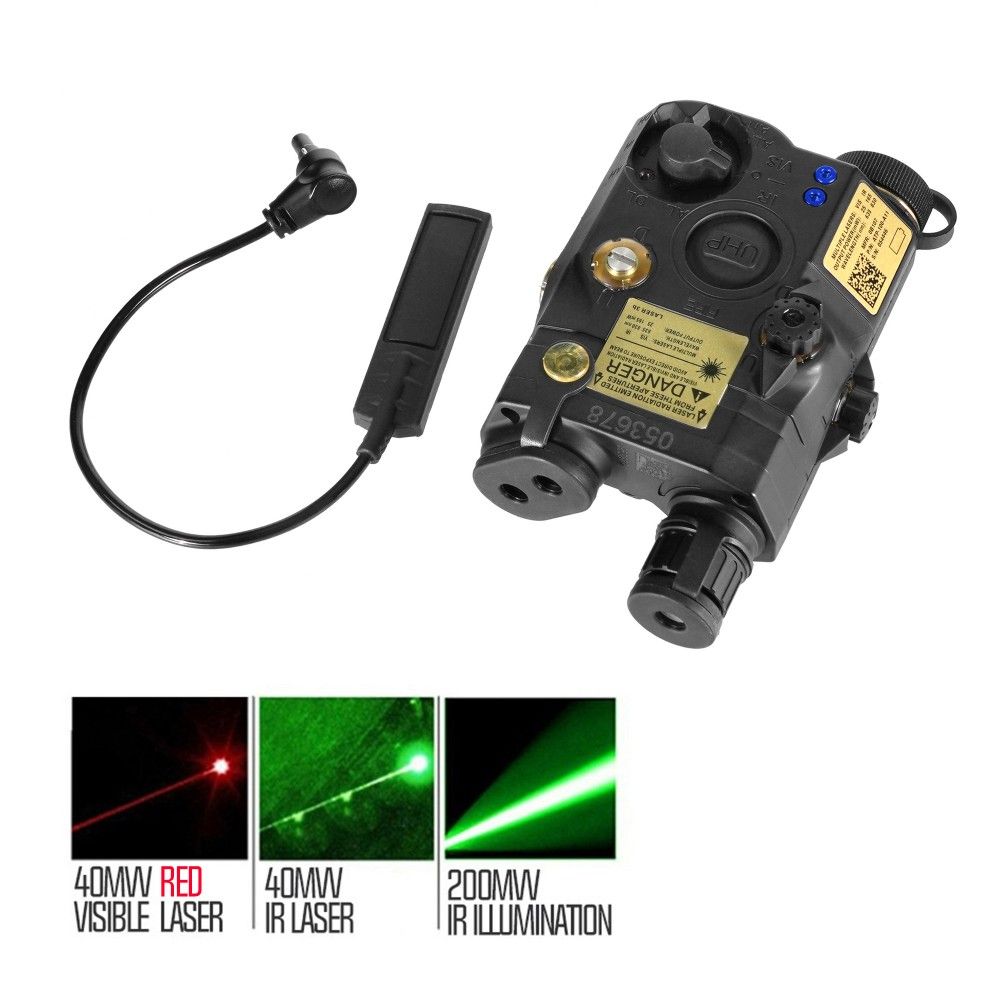

cgtacticals LA-5C PEQ UHP Ultra High Power 200mW VCSEL PEQ IR Illuminator & Laser 2025 High-end Version
$350.00
LA-5C VCSEL Deluxe IR Illuminator & Red Laser — co-axial optics, programmable P-Mode, maintains zero on 5.56/7.62. Rugged and reliable.
1000 in stock
Description
cgtacticals LA-5C P-Mode Programming Functions
Programming Steps:
1. Turn the dial to P-Mode.
2. Press and hold the UHP button. When the green status indicator light stays solid, use the other hand to rotate the dial to the desired IR mode (e.g., IR AL).
3. Release the button — the green indicator light will blink twice to confirm successful programming.
| Dial Position | Function Mode | IR Illuminator Status |
|---|---|---|
| IR AL | Constant-On Mode | IR illuminator stays continuously on |
| IR DL | Flash Mode 1 | Flashes once per second |
| IR AH | Flash Mode 2 | Flashes twice per second |
| IR IH | Flash Mode 3 | Flashes four times per second |
| IR DH | Flash Mode 4 | Flashes eight times per second |
Features a visible laser for daytime use, an invisible IR laser for covert targeting, and an IR illuminator to enhance night vision performance.
Features:
– Glass Fiber mould made
– PCB epoxy sealed
– Clicking windage/elevation adjust
– Adjustable IR illuminator
– Guaranteed hold zero for upto 5.56/7.62
– Comming with a crane plug
– One year warranty
Specifications:
– Co-alignment precision: ≤1MOA
– IR wavelength: 850nm
– IR laser power at High: 40mW
– IR laser power at Low: 0.6mW
– Beam divergence: 0.5mrad
– Visible wavelength: 650nm / 520nm
– Visible laser power at High: 40mW
– Visible laser power at Low: 4.5mW
– Beam divergence: 1mrad
– IR illuminator type: VCSEL IR laser 830nm
– IR illuminator power at High: 200mw
– IR illuminator power at Low: 5mw
– Adjustable divergence: 15-100mrad
– Waterproof rating: IPX44 (rain & splash resistant)
– Colour: Black or Dark Earth
– Mount: picatinny mount
– Battery: 3V CR123A
– Size: 90mm x 50mm x 35mm
– Weight: 150g
