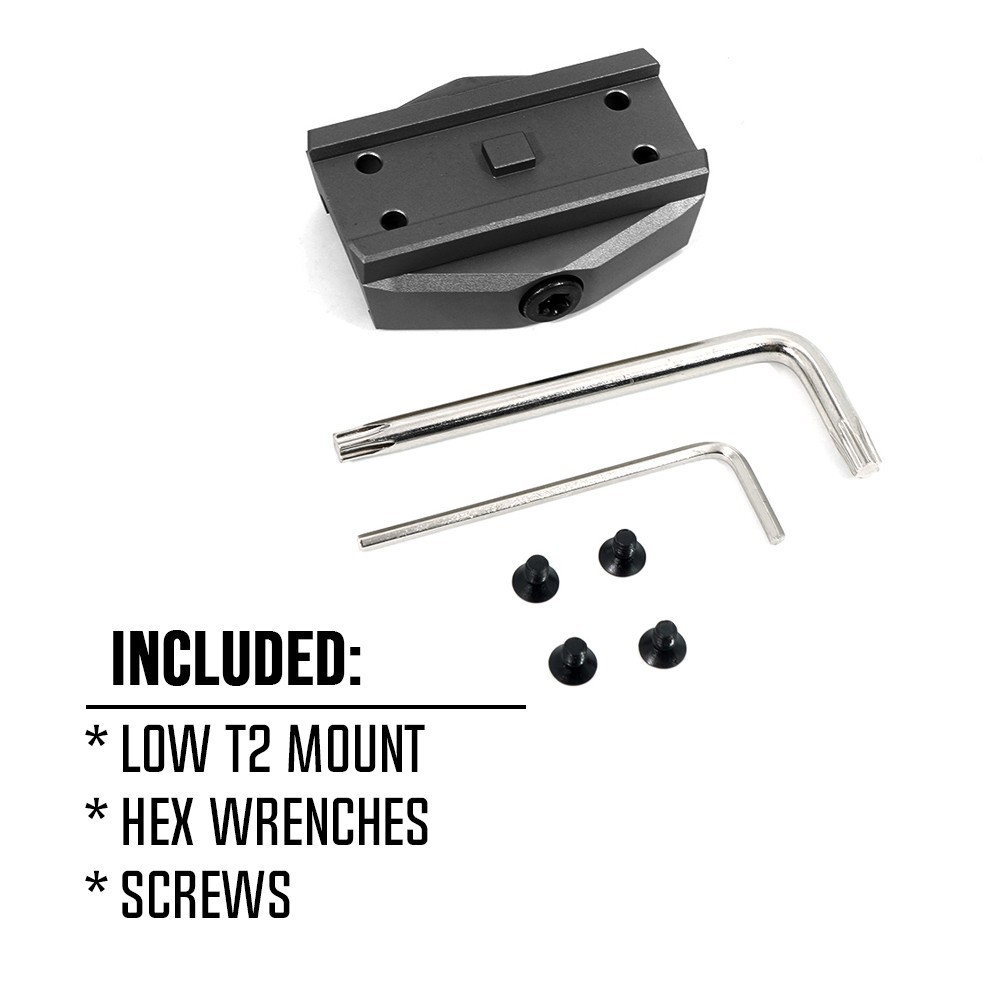

Ari Low T2 Mount Optic Centerline 0.9″ Height

The 0.9″ optic centerline matches up with the Ari Low Magnifier Mounts, and is ideal for use on firearms like the IWI Galil Ace, SAN Swiss SG550/SG551/SG552/SG553, and AK platforms.

Please note: the M5S and Duty are 10mm taller than the regular Micro red dot sights, which must be factored into the final height of the optic, and will prevent them from lining up with the Ari Low Magnifier Mounts.

Weight (including screws): 1.6 oz

Optic Centerline: 0.9″ with Micro T1/T2

Each mount is CNC machined from 6061-T651 and 7075-T651 aluminum and MIL-A-8625 Type III hard coat black anodized. Anodizing colors may slightly vary from part to part and batch to batch, and is completely normal. Includes all necessary screws and tools to attach optic to mount. Recommended torque values:

Picatinny clamp – 50 inch lbs (5.7 Nm)

Optic to mount – 11.9 inch lbs (1.35 Nm)

Additional mounting details: the Micro mounting interface features three horizontal surfaces and two angled surfaces. The optic is supposed to contact the mount only on the angled surfaces, which wedges it into place and prevents the optic from changing zero under recoil or harsh handling. It is completely normal to see a tiny gap between the optic and horizontal surfaces of the mount.

Hardware: four M3x4mm torx button head screw.
