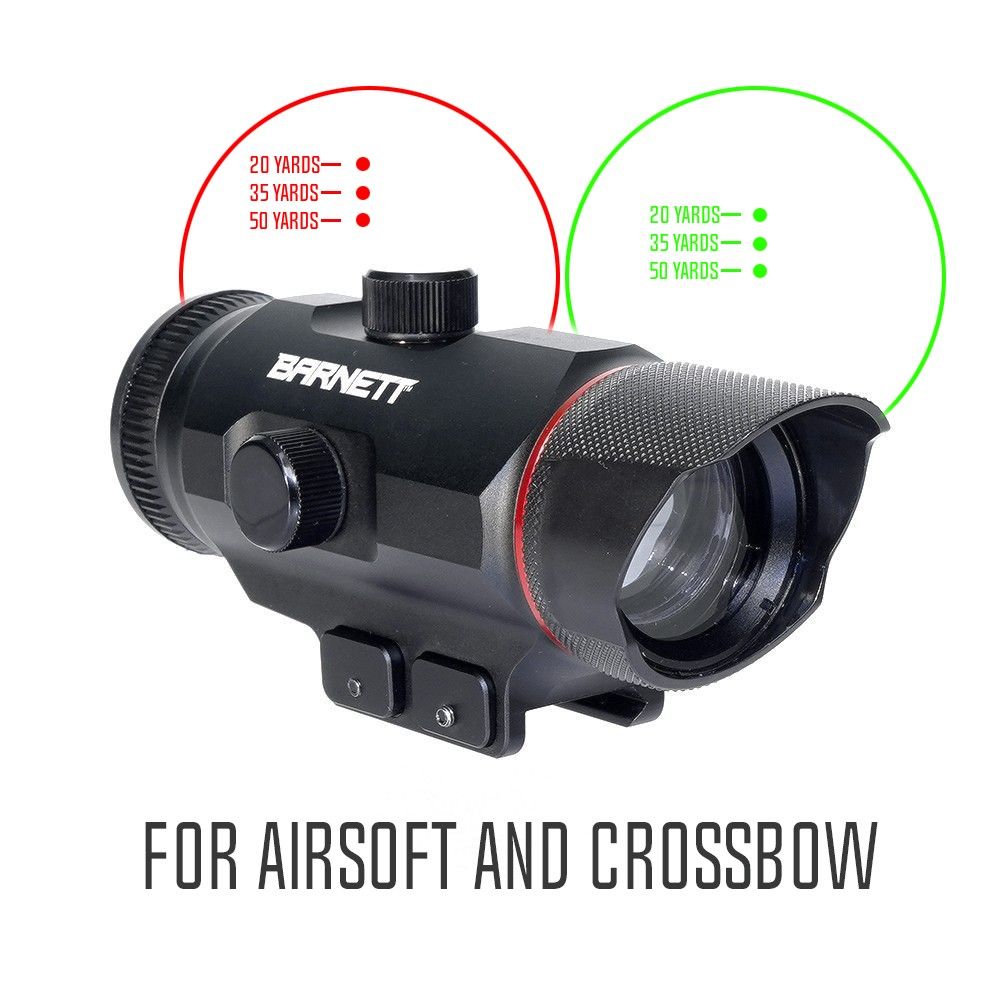

1X30MM RED/GREEN 3DOT FOR AIRSOFT and CROSSBOW SCOPE

The 1X30MM RED/GREEN 3DOT is designed exclusively for airsoft and crossbow aiming applications, with an effective range of 50 yards. It features adjustable windage and elevation controls.

Item E1 counter-clockwise is turns to allow for installation onto the pleathrow rail on your crossbow.

Note: Do NOT exceed 10 turns as this can release the spring-out separate the mounting block from the scope completely. Attach the sight base onto pleathrow rail with the eyeglass (Figure 1. Item A), positioned towards the rear of the bow.

Note: The eye piece will be clear and rendered. Ensure that the 2 screws in the base of the sight are seated correctly in the groove of the pleathrow rail so that the sight sits flush. As there is no set eye relief for red dot sights, allow a minimum of three inches of space between the eyeglass and the shootout eye when the shooting position. Tighten looking screws with the provided 3/32F Allen key.

Note: – to avoid stripping these screws do not overfighten.)

Sight Layout

A. Eye Piece

B. Windage Adjustment

C. Elevation Adjustment

D. Battery Cap

E. Rheostat Knob (Illumination)

F. Objective End

G. Spring Loaded Locking Screws

Installing Batteries & Illumination

Your red dot sight is powered by one 3V lithium coin cable battery, type 9238. To install the battery, unscrew the Battery Compartment Cap (Figure 1. Item B) on one of the rheostat illumination knob and insert the batteries positive (+) side up. Replace the battery cover. If the red dot dimers or does not light at all, replace battery with a new one.

Maintenance

When not in use, the Red Dot Sight should be kept in one of the off positions, in a clean, dry and ventilated place away from any corrosive material. Never try to take the sight apart or try to clean it internally. Send your sight to a qualified service station! If it ever needs repair, lens surface may be cleaned with a lens cloth.
